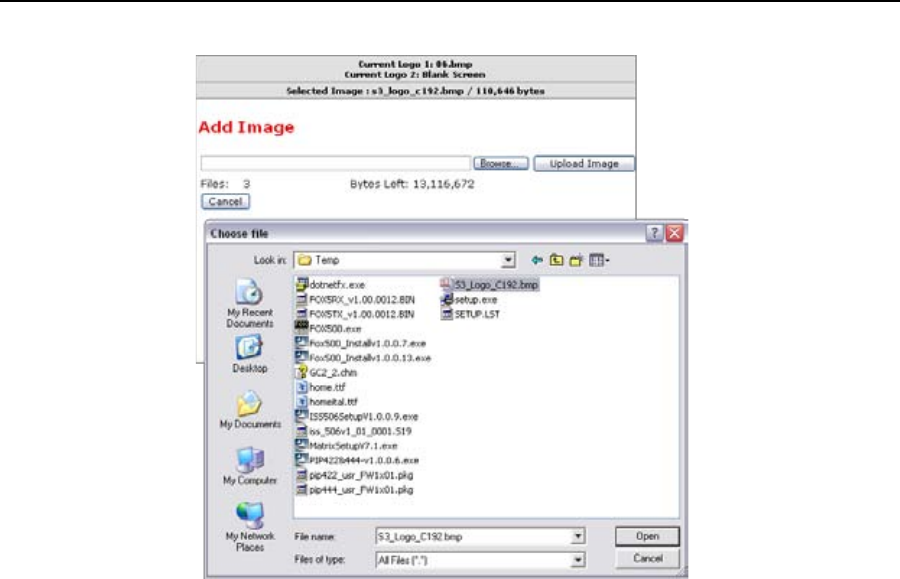

Figure 6-16 — Add Image field
Deleting an image
Delete an unwanted image as follows:
1
. In the Image Index Field, click the unwanted image.
2. Click the Delete button. The computer deletes the selected image from the
ISS.
Assigning (recall) a logo
Assign a bitmap image to one of two logos as follows:
1
. In the Image Index field, click the desired image.
2. Click the Logo 1: Assign or Logo 2: Assign link to assign the selected image
to the selected logo.
N
To assign a black screen to the logo, click the Black Screen link.
Configuring a logo
Configure the logo as follows:
1
. In the logo configuration area, click the radio button for the desired logo
(Logo 1 or Logo 2).
2
. Click the radio button for the desired method (Color [RGB] or Level [luma])
for keying out the unwanted material.
Color — The ISS keys out all material of a specific color (red, green, and/or
blue) that is below a variable threshold.
Level — The ISS keys out all material whose luminance level is below a
variable threshold.
3
. Click in the appropriate color or luma dropbox.
