Scan Converter Configuration menu

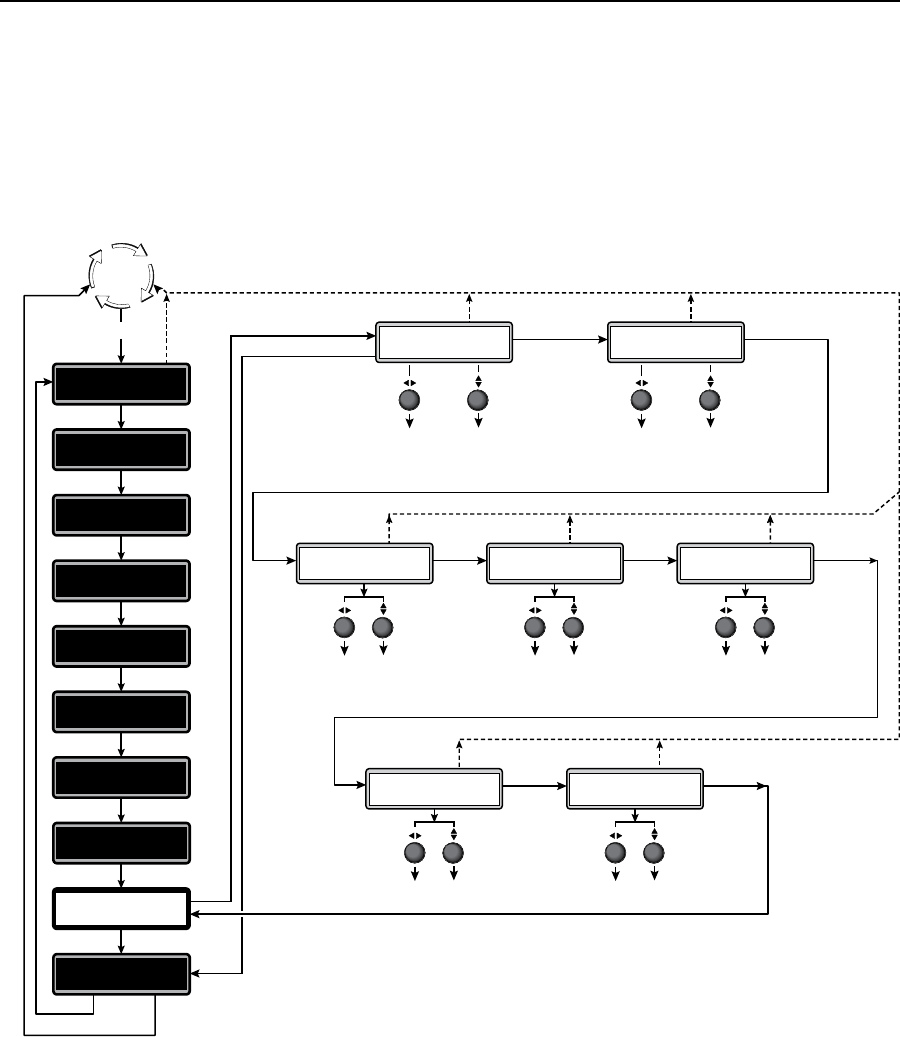

Figure 3-17 is a flowchart that shows an overview of the Scan Converter
Configuration menu, the submenus, and the available settings. The Scan Converter
Configuration menu is displayed only if an optional scan converter output board is
installed.
N
If no scan converter output board is installed, the main menu sequences directly
from the View Communications Settings menu to the Exit menu.
Menu
30 sec. 30 sec.
10 sec.
30 sec.
30 sec. 30 sec.
30 sec.
Next
* This menu and its associated submenus are available
only if the optional scan converter board is installed.
Next
Next
NextNext
Next
30 sec.
Next
Next
0000
through
4095
0000
through
4095
0000
through
4095
0000
through
4095
•
Composite/S-Vid
• YUV
•
RGsB
•
NTSC
•
PAL0 through 3
0 through 3 0 through 3
Default
Cycle
Menu
Menu
Menu
Menu
Next
Menu
Menu
Menu
Menu
Menu
Menu
Menu
Scan Converter
Configuration
Input
Configuration
Auto
Output
Configuration
Effects
Configuration
Logo
Capture
User
Presets
Advanced
Configuration
View Comm
Settings
Exit Menu
Press Next
*
H Size V
2048 2048
Output Format
Composite/S-Vid
Output Standard
NTSC
Flicker Filter
0
Encoder Filter
0
H Filter
0
H Center V
2048 2048
Figure 3-17 — Scan Converter Configuration Settings menu flowchart
Size submenu
The Size submenu displays and allows you to change the output size of the scan
converted output. When this submenu is active, rotate the Adjust [ knob to set
the horizontal size and rotate the Adjust { knob to set the vertical size.
Center submenu
The Center submenu displays and allows you to set the position of the scan
converted output. When this submenu is active, rotate the Adjust [ knob to set
the horizontal position and rotate the Adjust { knob to set the vertical position.
