Programming and Control, cont’d
ISS 506 Integration Seamless Switcher • SIS
Programming and Control
4-4
Ethernet Link
The rear panel Ethernet connector on the switcher (figure 4-3) can be connected
to an Ethernet LAN or WAN. This connection makes SIS control of the switcher
possible using a computer connected to the same LAN or WAN.
A cable that is wired as T568A at one end
and T568B at the other (Tx and Rx pairs
reversed) is a "crossover" cable.
A cable wired the same at both ends is
called a "straight-through" cable, because
no pin/pair assignments are swapped.
12345678
RJ-45
Connector
Insert Twisted
Pair Wires
Pins:
Crossover Cable Straight-through Cable
Pin
1
2
3
4
5
6
7
8
Wire color
White-green
Green
White-orange
Blue
White-blue
Orange
White-brown
Brown
Wire color
T568A T568B
End 1 End 2 End 1 End 2
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
Pin
1
2
3
4
5
6
7
8
Wire color
White-orange
White-green
Blue
White-blue
White-brown
Brown
Wire color
T568BT568B
White-orange
OrangeOrange
White-green
Blue
White-blue
GreenGreen
White-brown
Brown

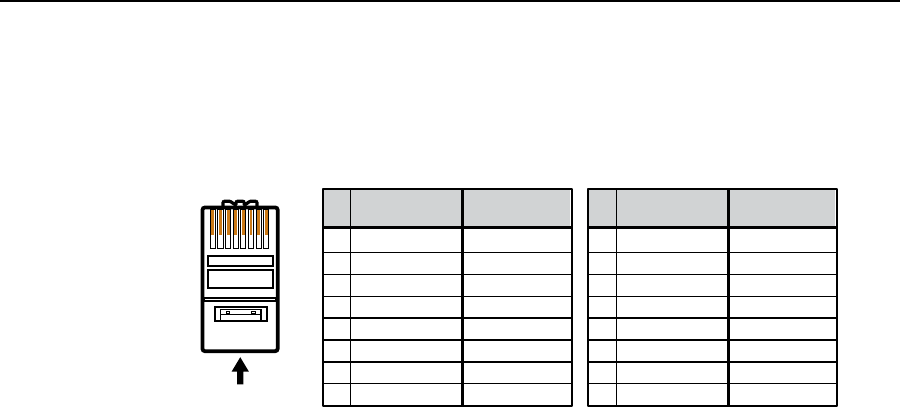

Figure 4-3 — RJ-45 connector pinout table
Ethernet connection
The cable can be terminated as either a patch cable or a crossover cable (figure 4-3)
and must be properly terminated for your application:
• Patch (straight) cable — Connection of the ISS to an Ethernet hub, router, or
switch that also hosts a controlling computer
•
Crossover cable — Direct connection between the ISS and a computer
Default address
To access the switcher via the LAN port, you need the switcher’s IP address. If the
address has been changed to an address comprised of words and characters, the
actual numeric IP address can be determined
using the front panel (see
“View and
Edit Communications Settings menu”
in chapter 3, “Operation”) or the Ping utility
(see “
Ping to determine the switcher’s IP address” or “Ping to determine the Web
IP address” in
appendix A
, “Ethernet Connection”, for more details). If the address
has not been changed, the factory-specified default is 192.168.254.254.
