3-13
ISS 506 Integration Seamless Switcher • Operation
Output Type submenu
Rotate either Adjust knob while this submenu is active to select the output video
type (RGBHV, RGsB, component [YUV] with tri-level sync, or component [YUV]
with bi-level sync).
Sync Polarity submenu
The display or projector may require a particular combination of horizontal (H) and
vertical (V) sync signal polarities. Select the appropriate combination of positive or
negative H and V sync by rotating either Adjust knob.
Effects Configuration menu

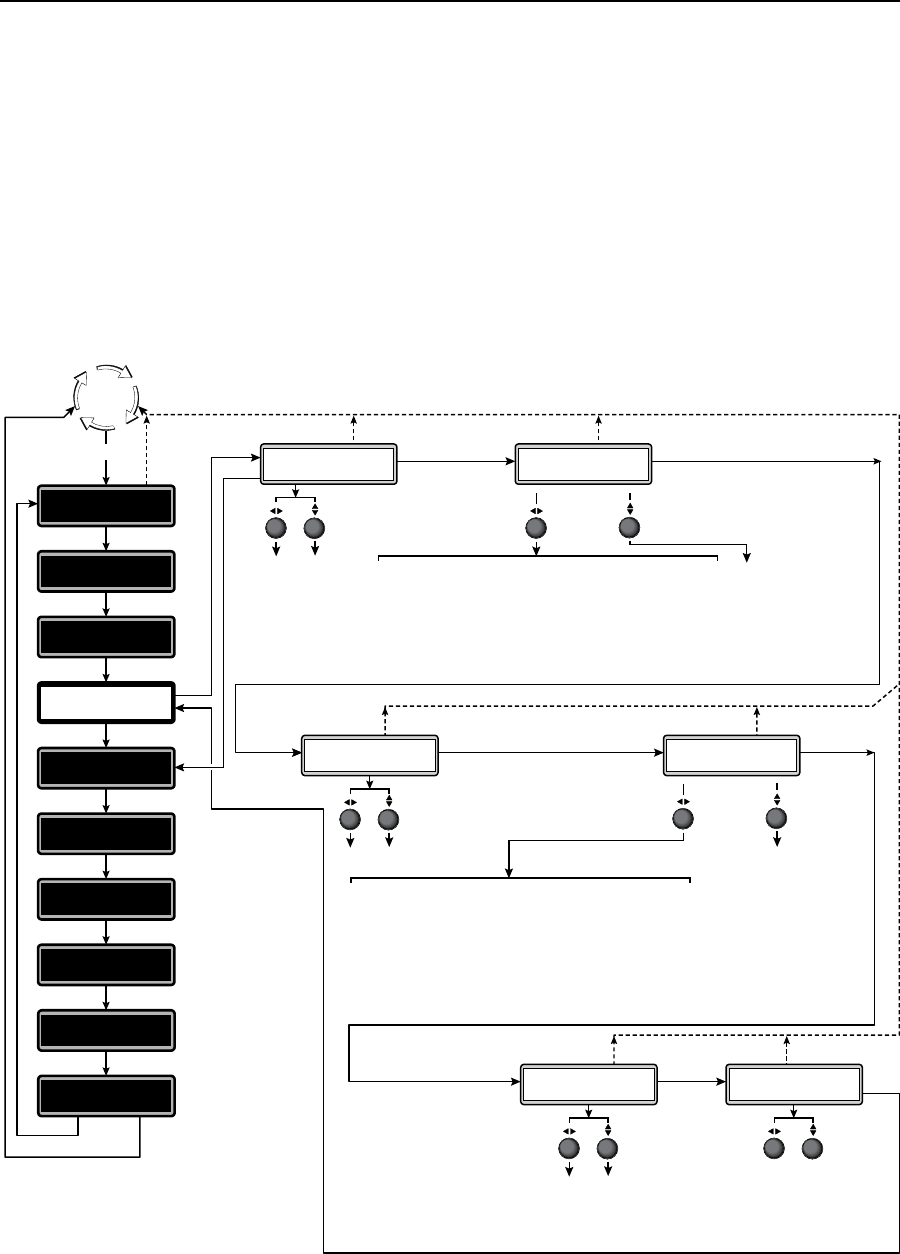

Figure 3-9 is a flowchart that shows an overview of the Effects Configuration menu,
the submenus, and the available settings.
000 to 255
0.0 to 5.0 seconds
in 0.1 second
increments
0.0 to 5.0 seconds in
0.1 second increments
30 sec. 30 sec.
30 sec.
30 sec.
30 sec.
Next
*
Subeffect type
• S Right • S Curtain In
• S Left • S Curtain out
• S Up • S Square in
• S Down • S Square out
• S Center in • S Plus in
• S Center out • S Plus out
• H Right • H Curtain In
• H Left • H Curtain out
• H Up • H Square in
• H Down • H Square out
• H Center in • H Plus in
• H Center out • H Plus out
• H Right • H Curtain In
• H Left • H Curtain out
• H Up • H Square in
• H Down • H Square out
• H Center in • H Plus in
• H Center out • H Plus out
Subeffect type
• Cut • Dissolve
• S Right • S Curtain In
• S Left • S Curtain out
• S Up • S Square in
• S Down • S Square out
• S Center in • S Plus in
• S Center out • S Plus out
Next
Next
Next
30 sec. 30 sec.
Next
Next
Next
Menu
Default
Cycle
Menu
Menu
Menu
Menu
Next
Menu
Menu
Menu
Menu
Menu
Menu
Menu
Effects
Configuration
Input
Configuration
Auto
Output
Configuration
Logo
Capture
User
Presets
Advanced
Configuration
View Comm
Settings
Scan Converter
Configuration
Exit Menu
Press Next
Dissolve Config
0.5 Seconds
0.0 to 5.0 seconds in
0.1 second increments
Wipe Config
S Right 0.5
Title config
Level 127
PIP Config
S Right 0.5
Border color
• None • Blue • Cyan
• Red • White Yellow
• Green • Magenta • Black
PIP Border Color
None
PIP Audio
<
Main
>
PIP
*
* This menu is available
only if the optional
scan converter board
is installed.
Figure 3-9 — Effects Configuration menu flowchart
