ISS 506 Integration Seamless Switcher • Operation
Configuring a logo
Once a bitmap is captured or uploaded via the LAN port, you can assign it to one
of the two logo locations. After it is assigned, you can position it and remove (key
out) unwanted portions of the image (such as backgrounds).
Assign the bitmap to a logo and configure the logo as follows:
1
. Press and hold the Next button (figure 3-26). While holding Next, press and
release the Logo 1/Black or Logo 2/Black button (the logo to which you want
to assign a bitmap). Release the Next button.
30 sec.
To
Figure 3-27
Press
Starting point
of logo
30 sec. 30 sec.
0000
through
upper H size
0000
through
upper V size
Default
Cycle
Logo #1 Pre Pos
X=0001 Y=0001
NEXT
Press
NEXT
Step
1
Step
3
Step
5
Press
NEXT
Step
7
Press and hold Next
Press and release Logo.
Release Next.
Rotate the knobs to
move the upper-left
corner of the logo into
the desired position.
Rotate the knobs to select
the bitmap image to
assign to this logo button.
Step
2
Step
4
NEXT
LOGO 1
/BLACK
Logo #1 Select
Rotate the knobs to
select the method —
luminance or color
(RGB) — of keying
out the backround.
Step
6
Logo #1 Pre Type
<
Level
>
RGB

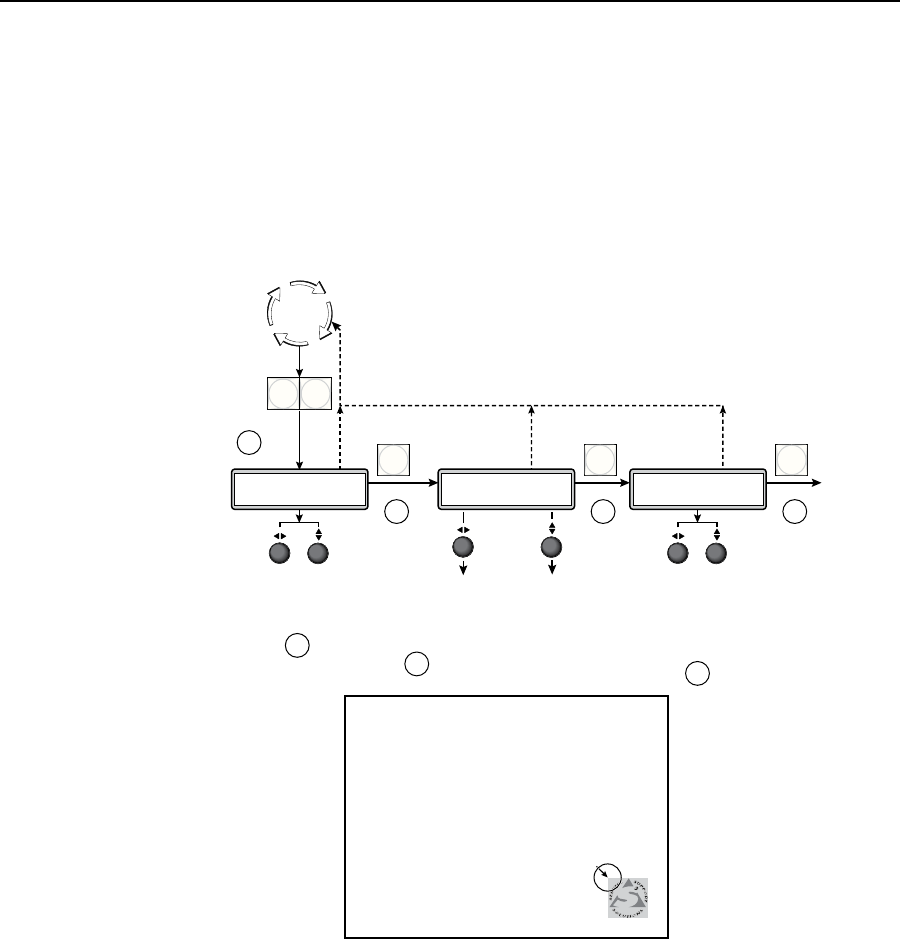

Figure 3-26 — Configuring a logo
2. Rotate the Adjust
{
knob to display, one at a time, all of the bitmap images
available for selection and the Black Screen selection.
3
. Press the Next button. The Logo Position submenu appears.
N
Depending on the size of the bitmap image, the Logo Position submenu may take
a few seconds to appear.
N
If you selected Black Screen in step 3, the PIP skips the Logo Position submenu
and proceeds straight to the Logo Type screen (step 6).
4
. Use the Adjust knobs to shift the starting point (upper-left corner) of the logo.
N
Rotate the Adjust
[
knob to shift the starting point on the X axis (horizontally).
Rotate the Adjust
{
knob to shift the starting point on the Y axis (vertically).
5
. Press the Next button. The Logo Type submenu appears.
