ISS 506 Integration Seamless Switcher • Modications
3. On the main board (figure 7-7), locate connectors J1, J2A, and J2B (
b
); the
standoff (
c
); and the rear panel connector port (
d
).
J1
2
J2A
J2B
2
4
3

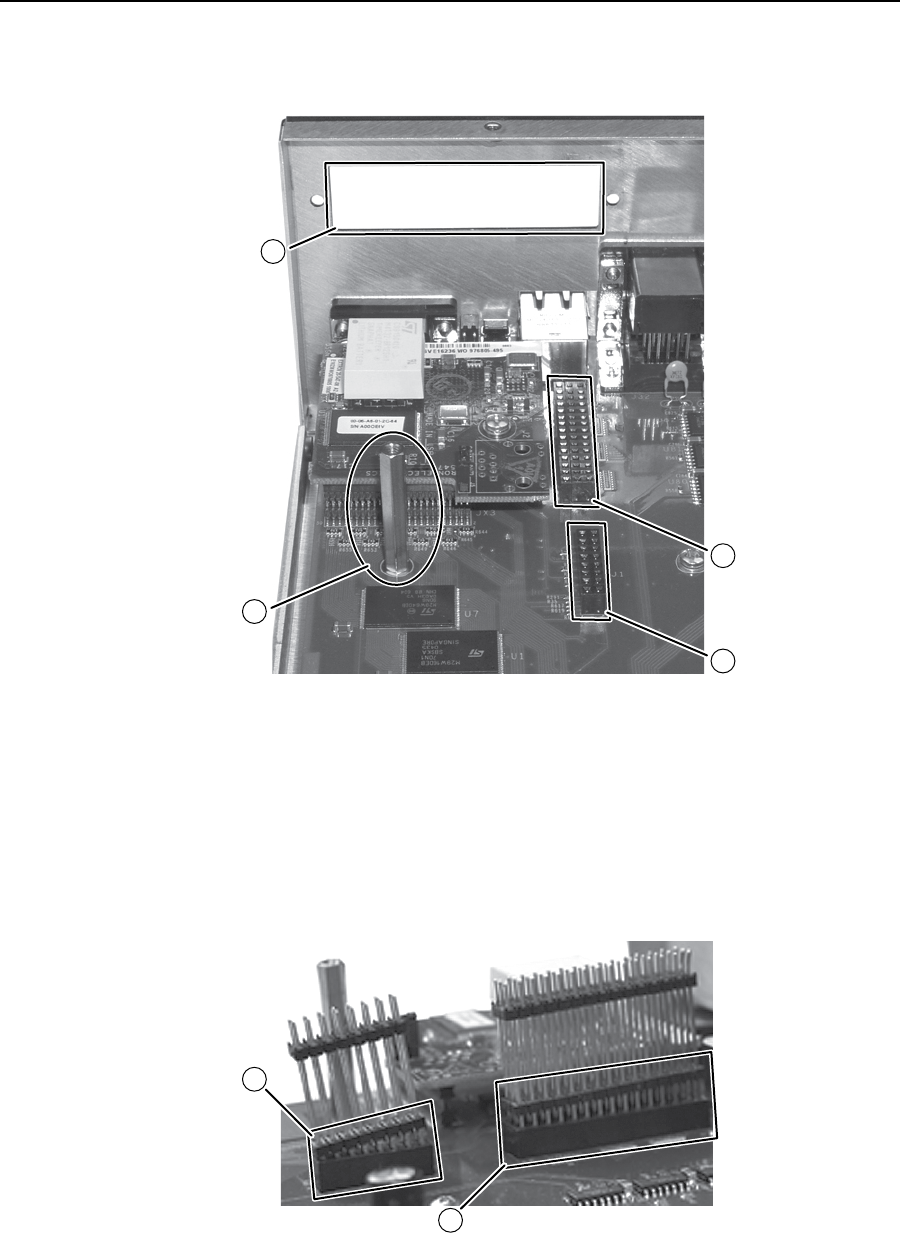

Figure 7-7 — Output board installation location
N
The HD-SDI and low resolution (scan converter) output daughterboards use
connectors J2A/J2B and J1. The DVI output board uses J2A/J2B only.
4
. Align one or both connector extension(s) with J1 and J2A/J2B on the main
board (
e
). Gently apply pressure to carefully mate the extension(s) with the
main board (figure 7-8).
N
To make installation of the output board easier, angle the extensions slightly
away from the rear of the ISS as shown.
5
5
‘Figure 7-8 — Connector extensions
