Operation, cont’d
ISS 506 Integration Seamless Switcher • Operation
3-36
Adjusting the picture
The picture adjustments allow you to fine tune the image quality of the selected
input. When you press one of the Picture Adjustment buttons (Color/Tint,
Brightness/Contrast, Size, Position, or Detail) once, the corresponding image
adjustment menu appears on the LCD screen. Press the button again to cycle
though the available menus for that adjustment, the preview and program outputs,
and selected effect, if applicable. Adjustments can then be made by rotating the
Adjust [ knob or the Adjust { knob. Picture adjustment settings are stored in
nonvolatile memory; when the switcher is powered down and then powered up,
the settings are restored.
30 sec.
timeout
2 sec.
2 sec.
10 sec.
Display
Cycle
Power
on
N The Adjust [ knob and the Adjust { knob are used to adjust the
image settings on the left and right sides of the LCD screen, respectively.
N If the PIP effect is selected, the Size, Position, and Zoom buttons cycle through
Preview/PIP window >Preview/PIP image > Program/Main.
If the PIP effect is selected, the Brightness/Contrast, Color/Tint, and Detail buttons cycle through
Preview/PIP window > Program/Main.
30 sec.
timeout
Extron
ISS 506 Vn.nn
Integration
SeamlessSwitcher
Initializing
Please Wait...
Preview Size
H=1024 V=0768
Cont Prev Bright
063 063
Preview Detail
064
Preview Position
H=+0000 V=+0000
Color Prev Tint
064 064
Preview Zoom
H=1024 V=768
Program Size
H=1024 V=0768
Cont Prog Bright
063 063
Program Detail
064
Program Position
H=+0000 V=+0000
Color Prog Tint
064 064
Program Zoom
H=1024 V=768
Cnt Prv/PIP BRT
064 064
Cnt Prg/Main BRT
064 064
Prv/PIP-Win Size
H=0510 V=0386
Prv/PIP-Img Size
H=0403 V=0289
Prg/Main Size
H=1024 V=0768
DETAIL
BRIGHT/
CONT
SIZE
ZOOM
COLOR/
TINT
POSITION
DETAIL
BRIGHT/
CONT
SIZE
ZOOM
COLOR/
TINT
SIZE SIZE
COLOR/
TINT
POSITION

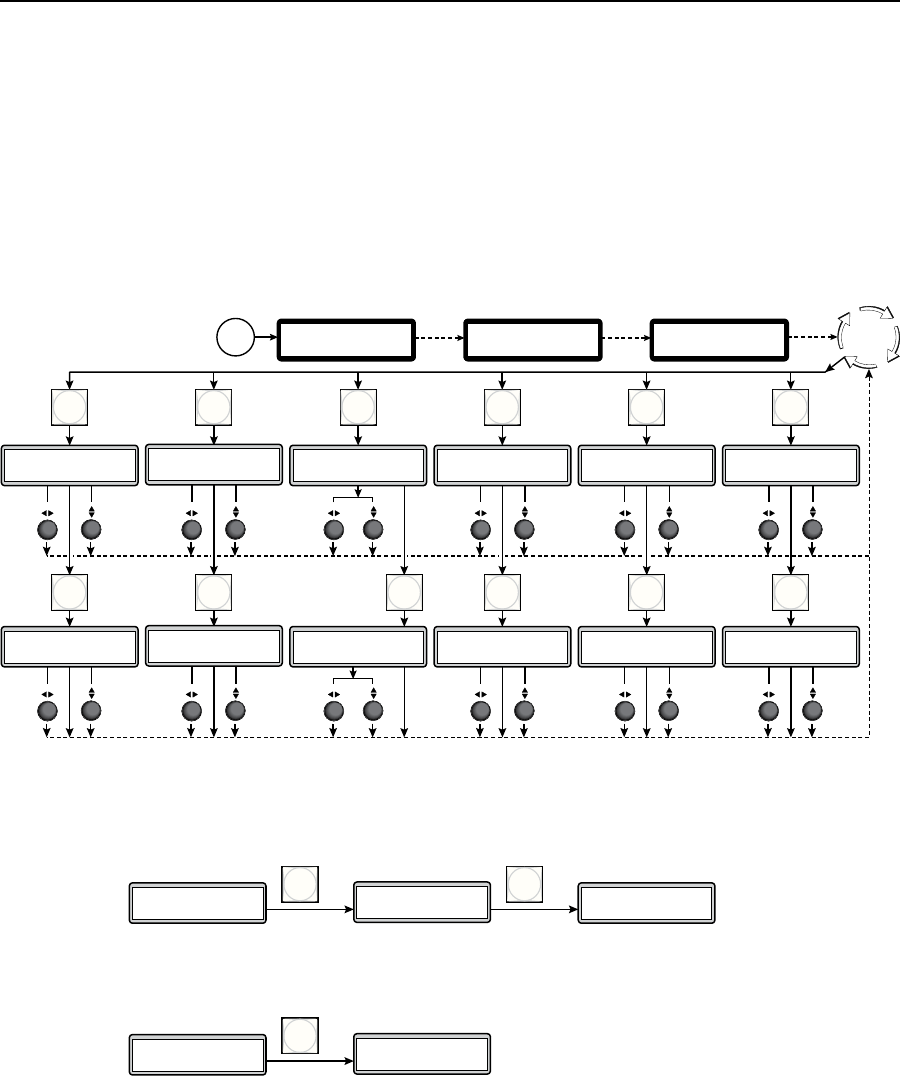

Figure 3-29 — Picture adjustments flowchart
