User Presets menu

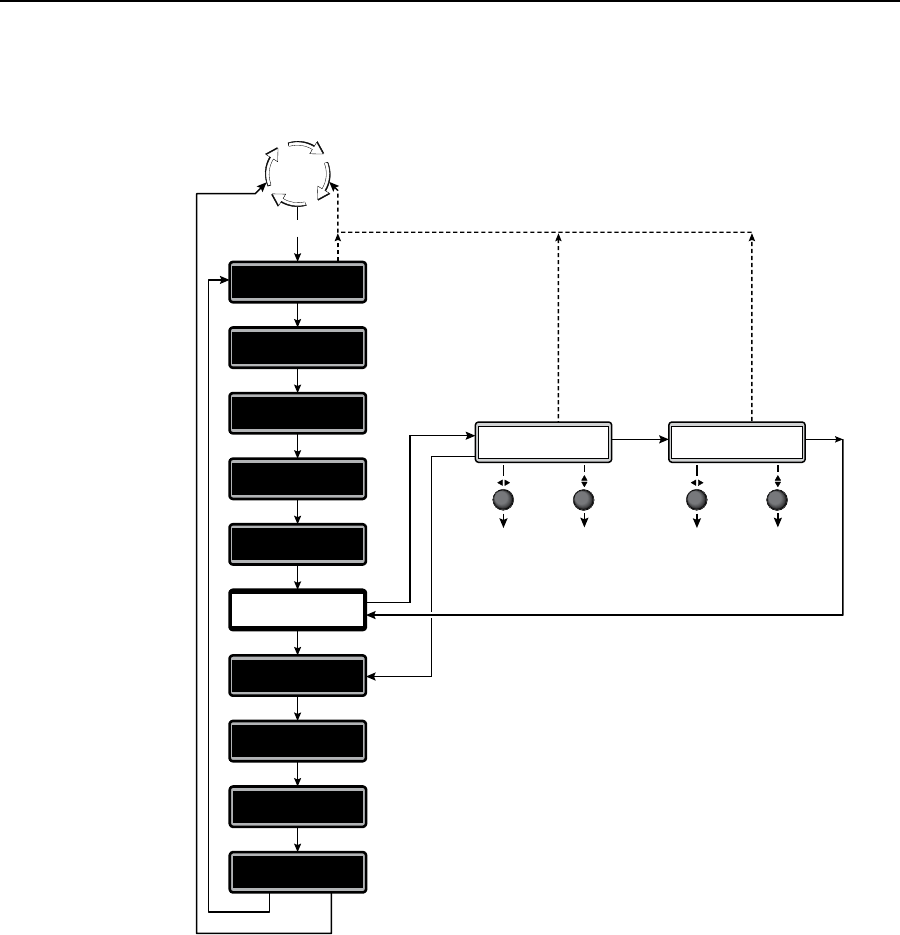

Figure 3-12 is a flowchart that shows an overview of the User Presets menu, the
Save User Preset and Erase User Preset submenus, and the available settings.
30 sec.
30 sec. 30 sec.
Next
*
Next Next
Menu
Default
Cycle
Menu
Menu
Menu
Menu
Next
Menu
Menu
Menu
Menu
Menu
Menu
Menu
User
Presets
Input
Configuration
Auto
Output
Configuration
Effects
Configuration
Logo
Capture
Advanced
Configuration
View Comm
Settings
Scan Converter
Configuration
Exit Menu
Press Next
Save Program
<
N/A
>
1 2 3
Erase Program
<
N/A
>
1 2 3
*
* This menu is available
only if the optional
scan converter board
is installed.
N/A, 1, 2, 3Program or
Preview
N/A, 1, 2, 3Program or
Preview
Values and parameters saved as a User Preset:
• Film mode • Total pixels
• Program phase • Preview phase
• Horizontal start • Vertical start
• Horizontal active pixels • Vertical active pixels
• Horizontal size • Vertical size
• Brightness and contrast • Detail
• Horizontal position • Vertical position
• Color • Tint
Figure 3-12 — User Presets menu flowchart
Save submenu
Rotate the Adjust [ knob while the Save submenu is active to select Program or
Preview. Rotate the Adjust { knob to highlight (< >) one of three memory presets
for the selected output or highlight N/A for no preset. Press the Next button to
save the current settings to the selected preset. Select N/A and press the Next
button to exit without saving the settings.
User presets are saved in nonvolatile memory; when the ISS is powered down and
later powered back up, the settings are available for selection. Saving the settings
to a preset overwrites the settings previously written to that preset.
