ISS 506 Integration Seamless Switcher • Operation
3-38
Using front panel security lockouts (executive modes)
There are four levels of front panel security lockout that limit the various aspects of
the operation of the ISS 506 Integration Seamless Switcher from the front panel.
• Complete — All front panel functions locked.
• Volume only — Locks all front panel functions except the Volume control
knob.
• Switching only — Allows input selection, Logo/Black selection, Freeze, Cut,
Take, and volume control. All other controls are locked.
• Program lockout — Locks all Program Input selection, Freeze, and
Logo/Black buttons.
N
In Program lockout mode, the Preview input selection, Freeze, Logo/Black, and
all other controls remain unlocked.
Change the level of the front panel lock as follows:
1
. Press and hold the Size and Position buttons until the LCD displays Exec
Mode Select and Complete (approximately 2 seconds) (figure 3-31). Release
the buttons.
30 sec.
Default
Cycle
Exec Mode Select
Disabled
Exec Mode Select
Switching Only
Exec Mode Select
Volume Only
Exec Mode Select
Complete
SIZE
POSITION
Press and hold
both buttons
simultaneously
for 2 seconds.
30 sec.
30 sec.
30 sec.
Exec Mode Select
Program Lockout
30 sec.

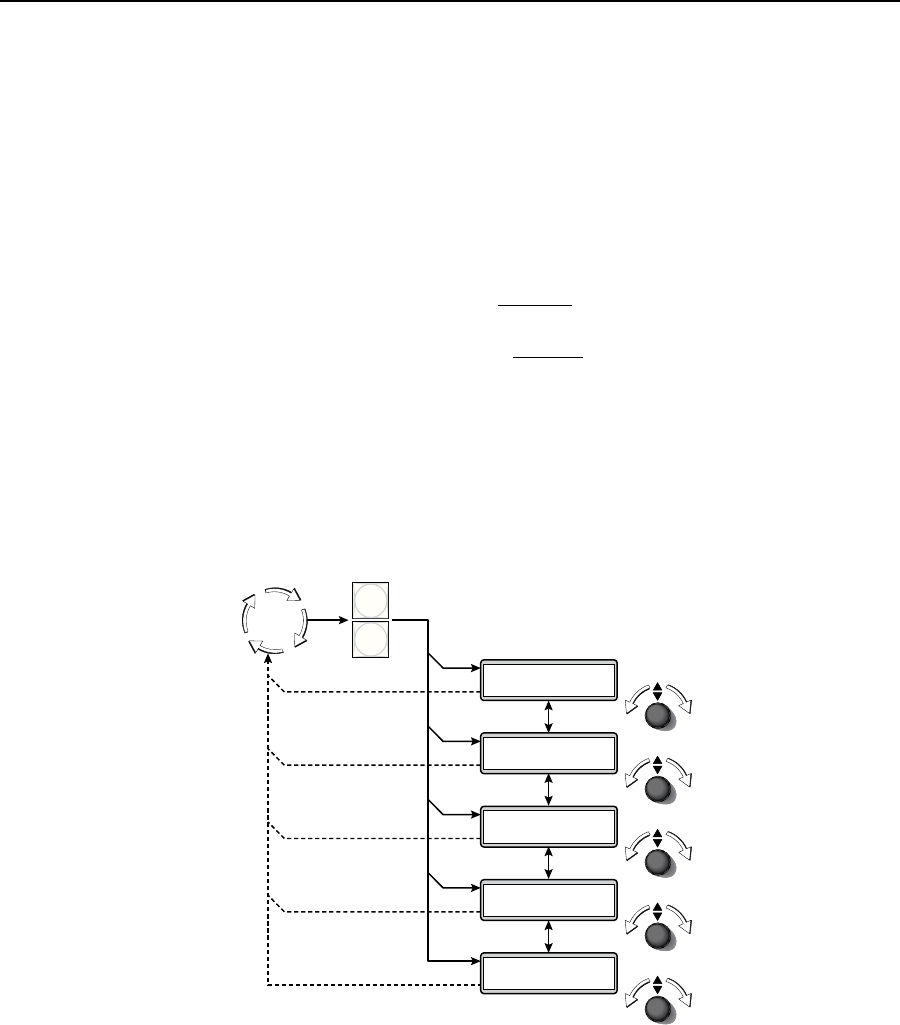

Figure 3-31 — Front panel security lockout flowchart
2. Rotate the Adjust
{
button to select a different lock mode or to disable the
front panel lock.
The LCD window also displays Executive Mode and the level of the lock if you
attempt operate a locked front panel control when the switcher’s front panel is
locked.
