ISS 506 Integration Seamless Switcher • Operation
View and Edit Communications Settings menu

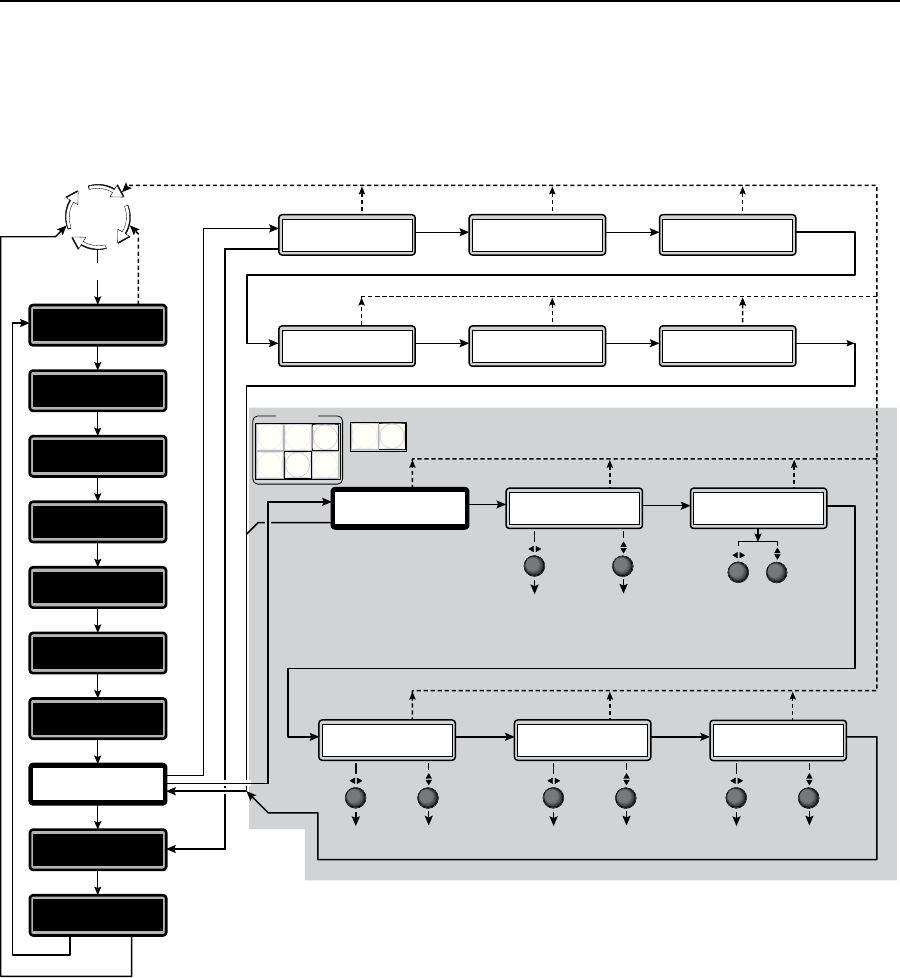

Figure 3-16 is a flowchart that shows an overview of both the View User
Communications Settings and the Edit User Communications Settings menus, the
submenus, and the available settings.
Menu
30 sec. 30 sec.
30 sec.
30 sec. 30 sec.
30 sec.
Edit Settings
Next
30 sec.
Next
NextNext
Next
Next
Next
Next
Next
30 sec.30 sec.
View Settings
30 sec.
Next
Next
30 sec.30 sec.
Next
30 sec.
Next
Menu
• 9600 • 38400
• 19200 • 115200
• RS232
• RS422
Select octet Edit octet Select octet Edit octet Select octet Edit octet
* This menu is
available only if
the optional scan
converter board
is installed.
Default
Cycle
Menu
Menu
Menu
Menu
Next
Menu
Menu
Menu
Menu
Menu
Menu
Menu
View Comm
Settings
Edit Comm
Settings
Input
Configuration
Auto
Output
Configuration
Effects
Configuration
Logo
Capture
User
Presets
Advanced
Configuration
Scan Converter
Configuration
*
Exit Menu
Press Next
Serial Port
9600 RS232
DHCP Mode
Off
Serial Port
9600 RS232
DHCP Mode
<
Off
>
On
MAC Address
nnnnnnnnnnnn
IP Address
254.254.000.000
Gateway Address
254.254.000.000
Subnet Mask
254.254.000.000
IP Address
254.254.000.000
Gateway Address
254.254.000.000
Subnet Mask
254.254.000.000
ADJUSTMENTS
NEXT
DETAIL
ZOOM
BRIGHT/
CONT
COLOR/
TINT
SIZE
MENU
POSITION
Figure 3-16 — View and Edit Communication Settings menu flowchart
The default menu is View Communications Settings and all of its submenus are
display only, unable to be edited. To view the Edit Communications menu and its
submenus, and to be able to edit the settings, press and hold the Next button while
you press and release the Detail and Color/Tint buttons. Release the Next button.
Serial Port submenu
The Serial Port submenu displays the baud rate of the ISS 506’s rear panel RS-232/
RS-422 port.
When this submenu is selected from the Edit Communications Settings menu,
rotate the Adjust [ knob to select a different baud rate. Rotate the Adjust { knob
to select between RS-232 and RS-422 protocol.
