ISS 506 Integration Seamless Switcher • Operation
WIPE RIGHT SOFT
WIPE LEFT SOFT
WIPE UP SOFT
WIPE DOWN SOFT
WIPE CENTER IN SOFT
WIPE CENTER OUT SOFT
WIPE CURTAIN IN SOFT
WIPE CURTAIN OUT SOFT
WIPE SQUARE IN SOFT
WIPE SQUARE OUT SOFT
WIPE PLUS IN SOFT
WIPE PLUS OUT SOFT
WIPE RIGHT HARD
WIPE LEFT HARD
WIPE UP HARD
WIPE DOWN HARD
WIPE CENTER IN HARD
WIPE CENTER OUT HARD
WIPE CURTAIN IN HARD
WIPE CURTAIN OUT HARD
WIPE SQUARE IN HARD
WIPE SQUARE OUT HARD
WIPE PLUS IN HARD
WIPE PLUS OUT HARD

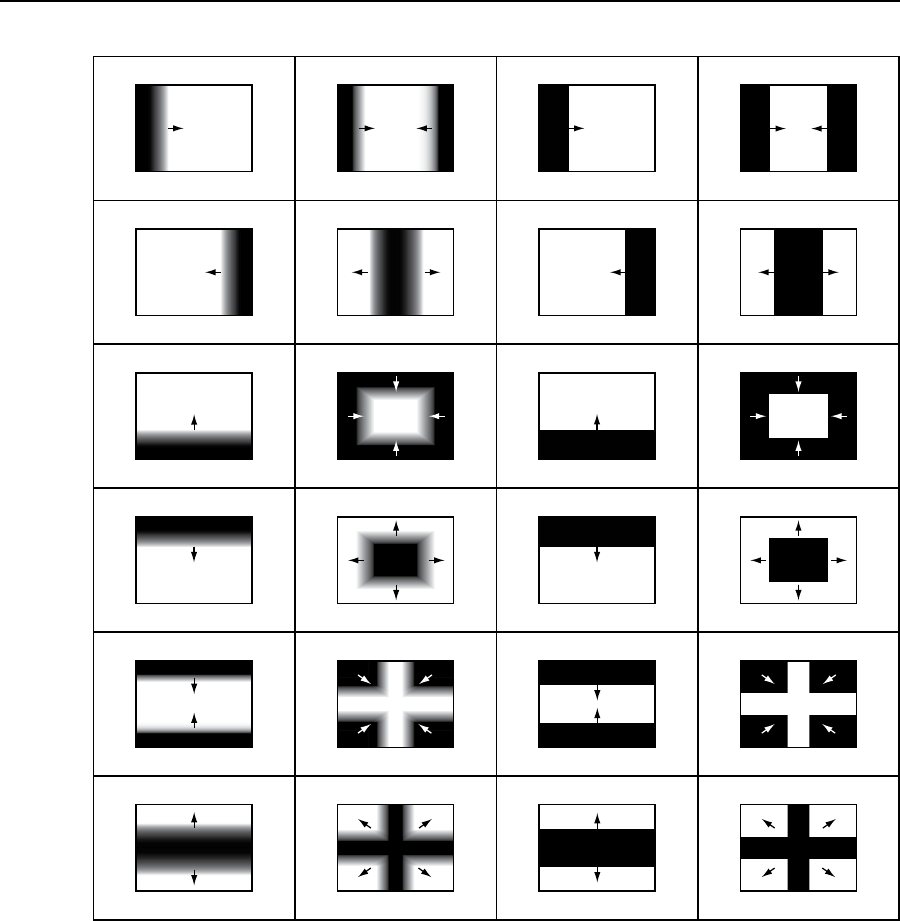

Figure 3-10 — Wipe effects
PIP Border Color submenu
The PIP Border Color submenu displays and allows you to set the color of the
border, if any, of the PIP window. Rotate either Adjust knob while this submenu is
active to select the desired color. Select among none (no border), red, green, blue,
white, magenta, cyan, yellow, and black.
PIP Audio submenu
The PIP Audio submenu displays and allows you to define the audio input (the
audio associated with the PIP window and the audio that is associated with the
main window) that is routed to the output when the PIP mode is turned on. Rotate
either Adjust knob while this submenu is active to select either main or PIP.
