Cisco WAN Manager User’s Guide
Version 10.5, Part Number 78-12945-01 Rev. D0, August 2003
Chapter 3 Network Topology
Using the Network Topology Menus

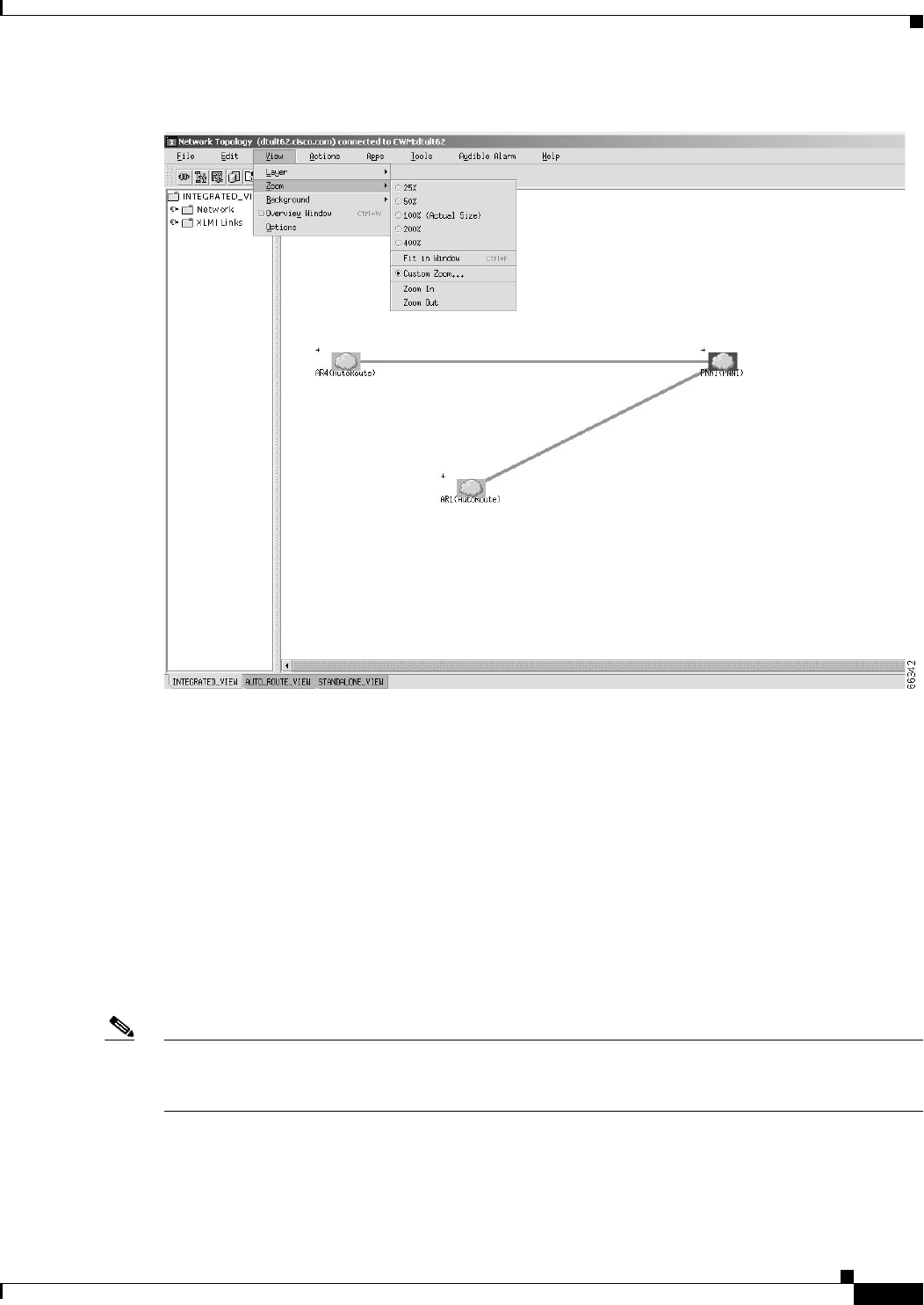

Figure 3-5 View Menu- Zoom Submenu
Background
The Background option, shown in Figure 3-6, is a submenu which provides the following functions:
Set Color
The Set Color option sets the background color of the current submap, or clears the background color
of the current submap.
Set Map
The Set Map option brings up a directory window that allows you to save a Topology background map
by choosing from a variety of ILV images.
Note CWM currently ships with a base set of ILV images. Use these ILV images (background maps) to avoid
resolution problems that can occur with images in other formats such as .gif or .jpg. Additional images
may be used by copying a new image to the image directory.
Clear Map
The Clear Map option clears the background image in the current submap.
