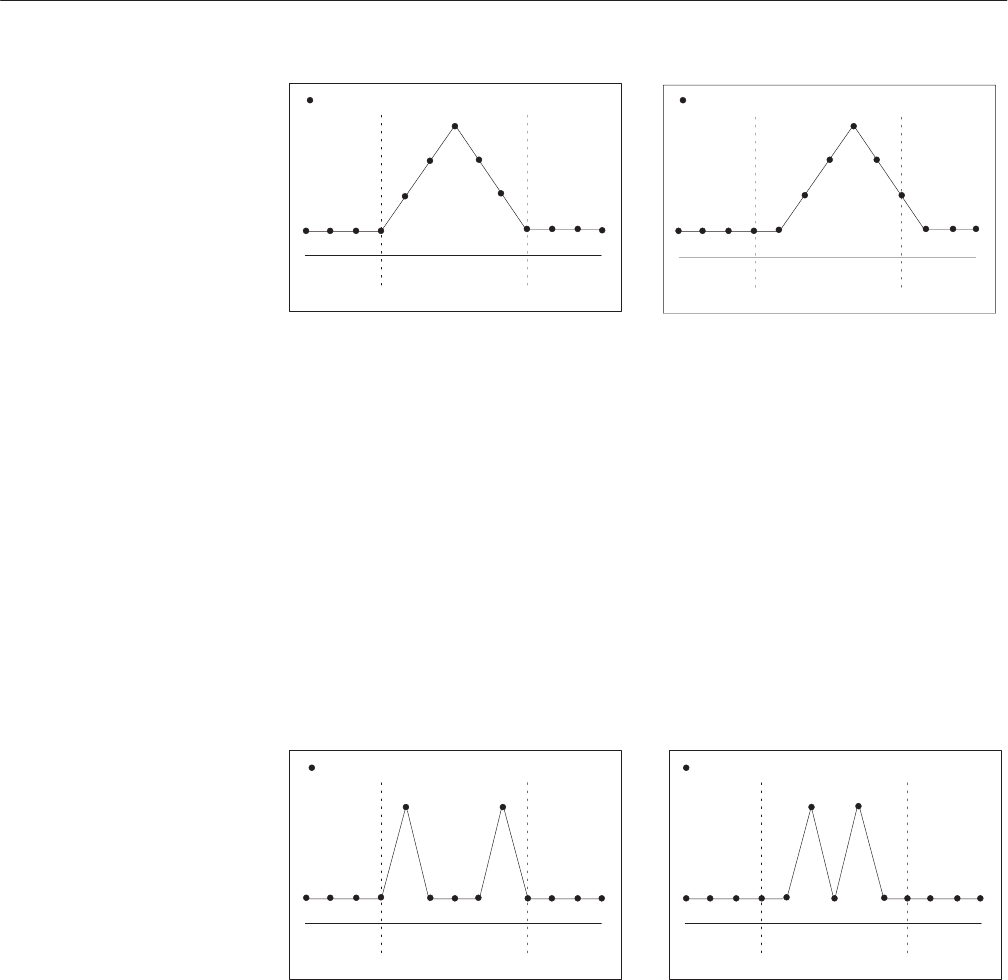

Figure 3 Ć53: Data Shifted Using the Right" Item
Although the maximum value that can be specified for the shift is the
number of waveform data points, the section of the data that is shifted
beyond the maximum number of data points is lost after the shift.
Expand or Compress. The area delimited by the left and right vertical bar
cursors is divided into two sections at the center of the cursors, and those
two regions are shifted towards the center point by shift scale values for
Compress and away from the center for Expand. In Figure 3 -54, when the
shift type is Compress, the data shown at the right of figure results when the
data shown at the left is compressed by 1.
01
2
3456 78 91
0
11
1
2
Sampling Point
01
2
3
4
5678 91
0
11
1
2
Sampling Point
Original Data Data Compressed by 1
Figure 3 Ć54: Data Compressed Using the Compress" Item
The Shift Values For Selecting Expand or Compress
Expand. Although the maximum value that can be specified for the shift is
the number of waveform data points, the section of the data that is shifted
beyond the maximum number of data points is lost after the shift.
