Appendix B: Performance Characteristics
BĆ8
AWG2021 User Manual

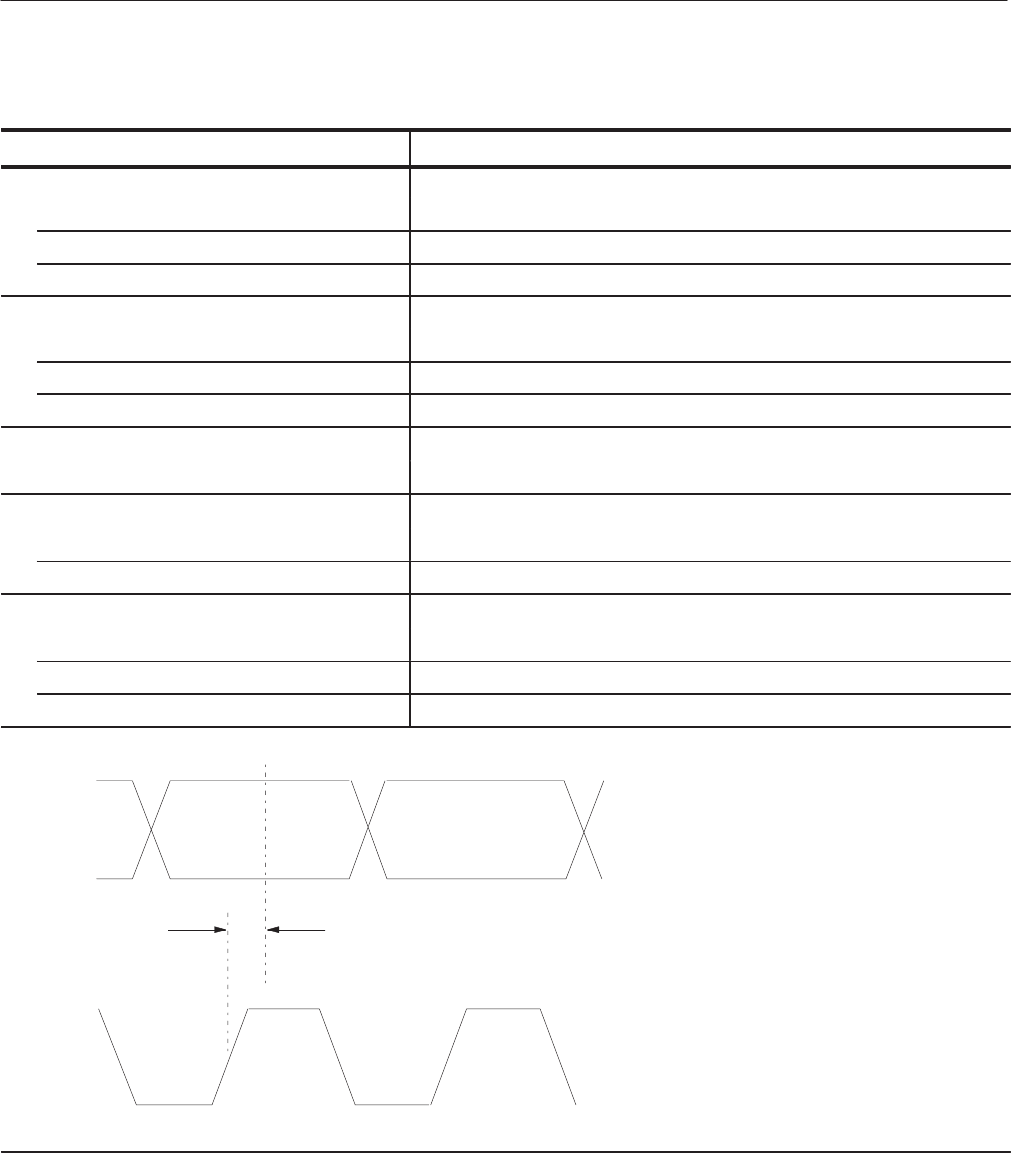

Table BĆ3: Electrical Characteristics (Cont.)
Characteristics Description
** MARKER1
** Amplitude 2.5 V (+5%, -10%) into 50 W, 5 V (+5%, -10%) into open circuit
Rise/Fall time <8ns
Marker to Signal delay within 15 ns
** MARKER2
** Amplitude 2.5 V (+5%, -10%) into 50 W, 5 V (+5%, -10%) into open circuit
Rise/Fall time <8ns
Marker to Signal delay within 15 ns
** CLOCK
** Amplitude 1 V ±0.3 V into 50 W
ECL DIGITAL DATA OUT (Option 03)
Skew between Data within 1 ns
Clock to Data delay within 2 ns
** TTL DIGITAL DATA OUT (Option 04)
** Amplitude >2 V into 50 W
Output Data rate 100 MB/s minimum
Clock to Data delay (see Figure BĆ1) within ±4ns
Figure BĆ1: Timing for the Data and Clock Signals
50%
Data
Clock
Within ±4ns
Middle point of the Data
