DES-7200 Configuration Guide Chapter 9 NLB Group Configuration
9-5
9.4 Typical NLB GROUP
configuration example
9.4.1 Networking requirements
NA.
9.4.2 Network topology

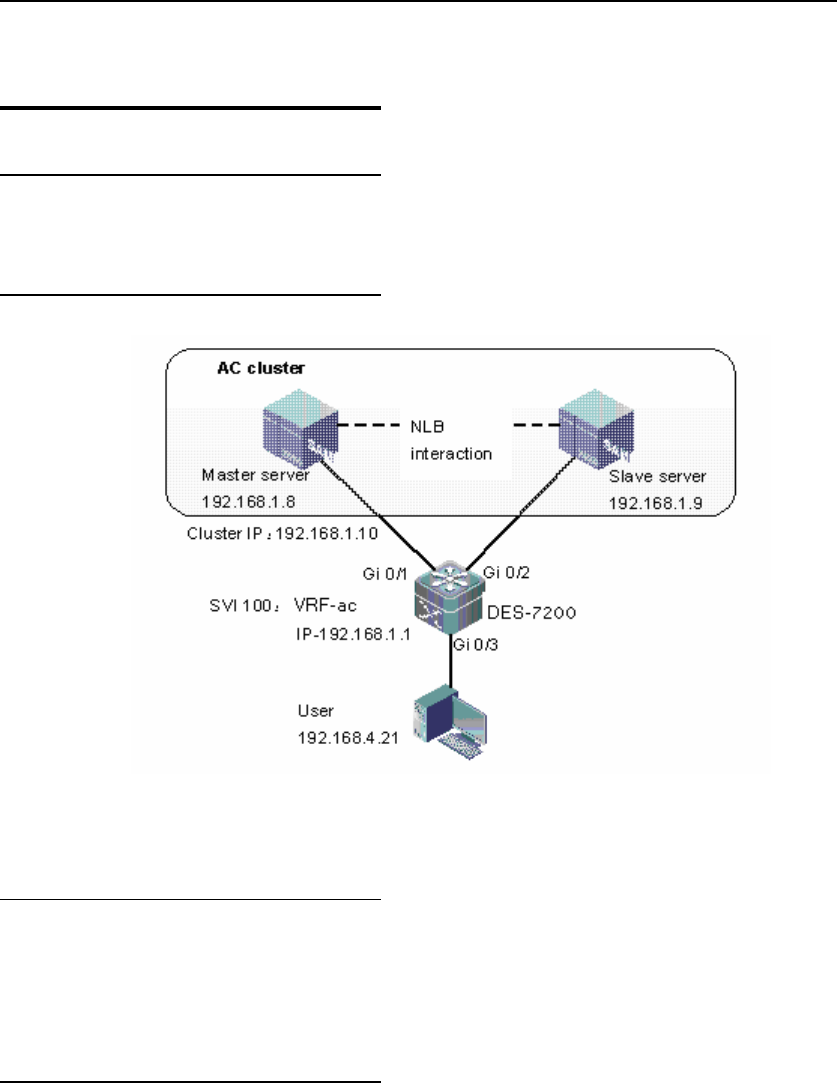

Fig 2 NLB Group network topology
9.4.3 Configuration tips
Cluster communicates with devices via SVI, but cannot communicate with
Routed Port (this is because only SVI can send the same packet to multiple
ports).
9.4.4 Configuration steps
1) Configure VLAN 100 to include Gi 0/1 and Gi 0/2 into VLAN 100
# Enter global configuration mode
DES-7200# config terminal
# Create VLAN 100
DES-7200(config)# vlan 100
DES-7200(config-vlan)# end
DES-7200(config)#
